Temper Soft Annealed Coiled Copper Pipe

Classification: Copper
Description:

a.Size ranges: Min. Diameter: 3/16" (4.76mm) Max. Diameter: 7/8" (22.22mm) b.Lengths: Standard available lengths are 15m, 30m, 50FT

E-mail:　judy@sdtmtg.com

+86 18863509246">WhatsApp:　+86 18863509246

RELATED PRODUCTS ONLINE MESSAGE

Keywords: Temper Soft Annealed Coiled Copper Pipe

Views:

Size Range:

Actual Copper Tube Size Outside Diameter x Wall Thickness		Weight (kg/m)	Safe Working Pressure (kPa)
metric (mm)	imperial (inches)	Weight (kg/m)	50ºC	75ºC
6.35 x 0.56	1/4" x 24swg	0.091	7,069	5,862
6.35 x 0.61	1/4" x 23swg	0.098	7,760	6,435
6.35 x 0.71	1/4" x 22swg	0.113	9,175	7,608
6.35 x 0.81	1/4" x 21swg	0.126	10,635	8,819
9.52 x 0.56	3/8" x 24swg	0.141	4,584	3,801
9.52 x 0.61	3/8" x 23swg	0.153	5,018	4,161
9.52 x 0.71	3/8" x 22swg	0.176	5,900	4,893
9.52 x 0.81	3/8" x 21swg	0.198	6,800	5,639
12.70 x 0.56	1/2" x 24swg	0.191	3,389	2,810
12.70 x 0.61	1/2" x 23swg	0.207	3,705	3,072
12.70 x 0.71	1/2" x 22swg	0.239	4,344	3,603
12.70 x 0.81	1/2" x 21swg	0.271	4,994	4,141
15.88 x 0.56	5/8" x 24swg	0.241	2,688	2,229
15.88 x 0.61	5/8" x 23swg	0.262	2,936	2,435
15.88 x 0.71	5/8" x 22swg	0.303	3,438	2,851
15.88 x 0.81	5/8" x 21swg	0.343	3,945	3,270
15.88 x 0.91	5/8" x 20swg	0.383	4,459	3,698
15.88 x 1.02	5/8" x 19swg	0.426	5,031	4,172
19.05 x 0.56	3/4" x 24swg	0.291	2,228	1,848
19.05 x 0.71	3/4" x 22swg	0.336	2,846	2,360
19.05 x 0.91	3/4" x 20swg	0.464	3,684	3,055
19.05 x 1.14	3/4" x 0.045"	0.574	4,668	3,871
22.22 x 0.91	7/8" x 20swg	0.545	3,138	2,602
22.22 x 1.14	7/8" x 0.045"	0.675	3,970	3,292
22.22 x 1.40	7/8" x 0.055"	0.819	4,929	4,088

Details

Material : C11000, C12200, T2, TP2, TU2

Usages: installation of air conditioning and refrigeration systems

Cu: min 99.90%

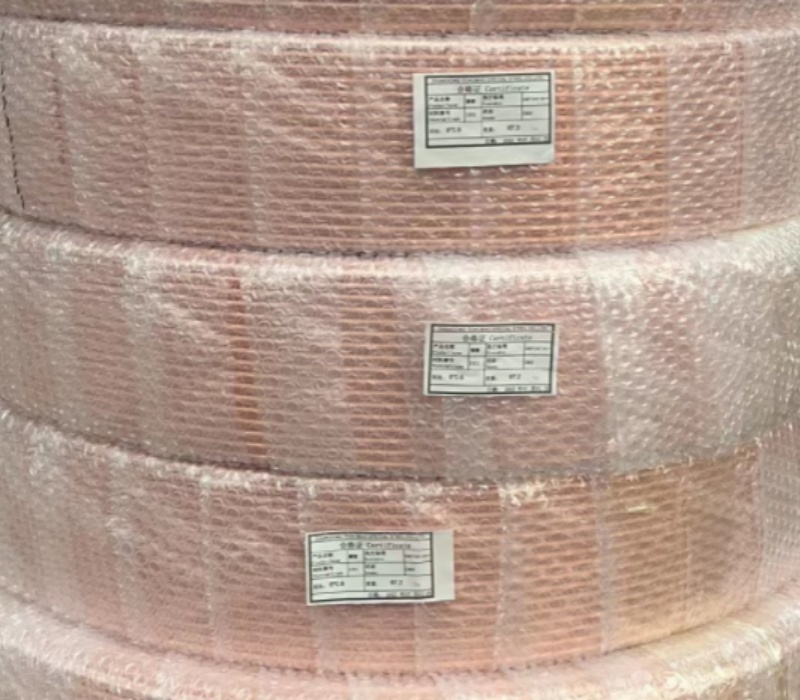

Packing: Coils are capped with plastic end caps, carton packing or plywood boxes

Standard: ASTM B 280 / EN 12735-1 and ASTM B68 and all relevant international standards

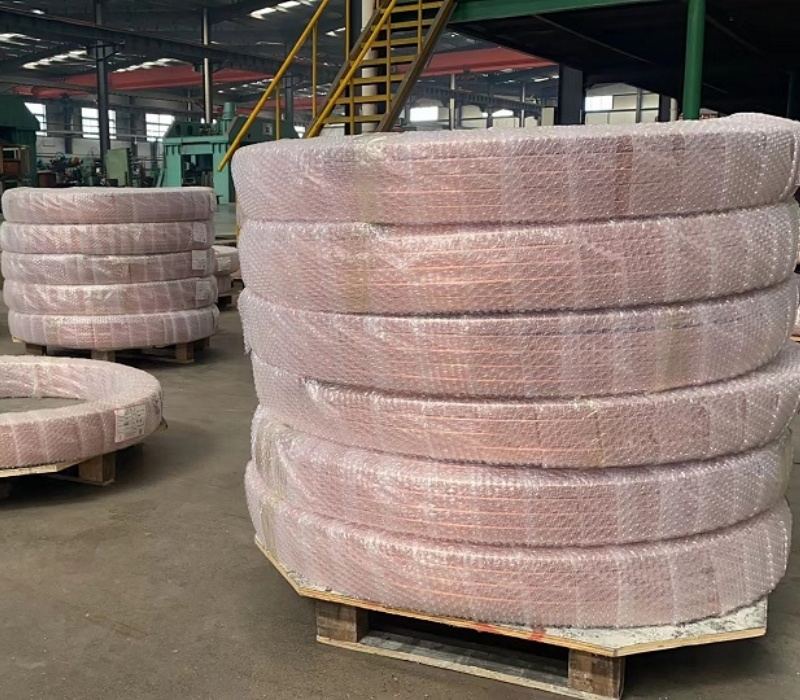

Packaging and Transportation

Our company is one of the large steel manufacturers in Shandong with strong supply capacity. Since opening up the international market, our products have been exported to Europe, Russia, the United States, the Middle East and other countries and regions, and are deeply trusted by customers. We use high-standard packaging and efficient transportation, while maintaining timely communication with customers to ensure product safety and on-time delivery.

Customer feedback

Core principles: Quality and service first. Quality is the top priority in all business activities. Good customer service is equally important.
Continuous improvement and innovation: To develop and improve products or services to better meet customer needs.
Quality objectives: Strive for perfection in the delivery of products or services to ensure no defects. Strive for complete customer satisfaction, no complaints. The company is highly focused on maintaining high standards and constantly improving to meet customer expectations.

Application

Steel is widely used in construction, manufacturing, transportation and other fields. In architecture, it is used to build steel structure frames, Bridges and high-rise buildings; In the manufacturing industry, it is used to produce machinery and equipment, automobiles, ships, etc.; In the field of transportation, it is used for railway tracks, vehicle bodies and containers. In addition, steel is used in the energy industry, such as wind power towers and oil pipelines. Its high strength, durability and plasticity make it an important material for modern industry.
