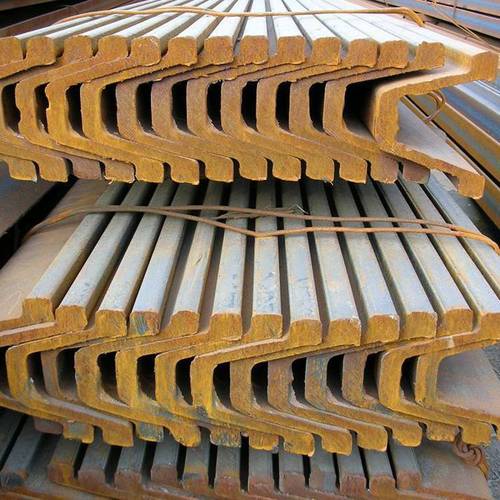

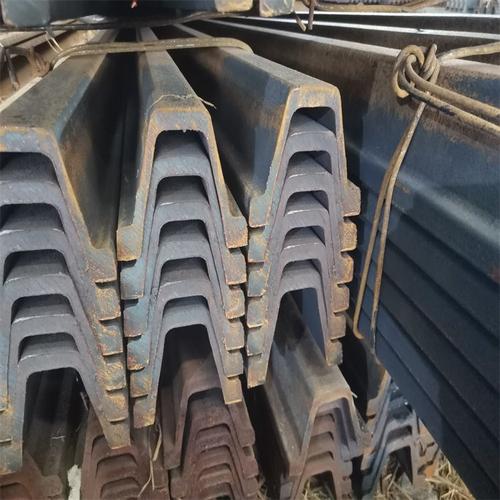

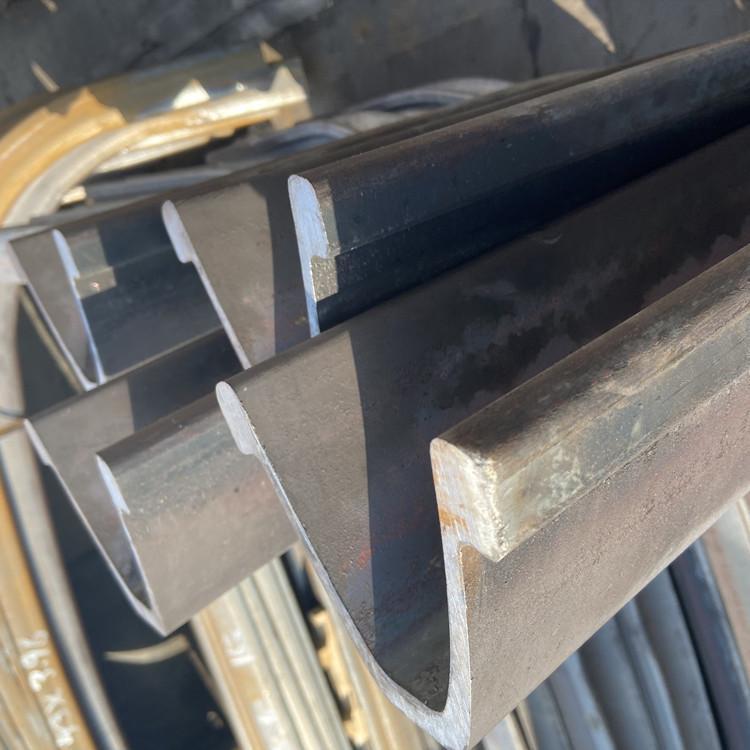

Mine U-Shaped Steel

Details

Mine U-shaped steel is a type of steel specially used for mine support, named for its cross section shape similar to the letter "U". It plays a supporting and reinforcing role in underground engineering such as mine roadway and tunnel engineering, which can effectively prevent landslide and geological deformation and ensure mine safety production.

1. Material
Mine U-shaped steel usually uses high-strength, high-toughness steel, common materials include:
(1) low-alloy high-strength steel: such as Q345, Q390, etc., with high strength and toughness.
(2) high-quality carbon structural steel: such as 20MnK, 25MnK, etc., after special treatment, excellent comprehensive performance.
(3) Corrosion resistant steel: In humid or corrosive environments, corrosion resistant steel may be used or surface treatment (such as galvanized).

2. Specifications and dimensions
The specifications of Mine U-shaped steel  are large to meet the needs of mine support. Common specifications include:
Height (H) : 100mm to 400mm.
Leg width (B) : 50mm to 150mm.
Waist thickness (T) : 5mm to 20mm.
Common models are:
18U, 25U, 29U, 36U, etc., the number represents the approximate weight of U-shaped steel (kg/m).

3. Production process
The production process of Mine U-shaped steel mainly includes:
(1) Hot rolling molding: through high temperature rolling, the production of high strength, high toughness of U-shaped steel.
(2) Cold forming: Some light mining U-shaped steel uses cold forming process, but it needs to ensure its strength and toughness.
(3) Heat treatment: Some mining U-shaped steel will be tempered to improve its overall performance.

Fourth, surface treatment
In order to improve the corrosion resistance and service life of mining U-shaped steel, the following surface treatments are usually carried out:
(1) Galvanizing: a layer of zinc is plated on the surface to improve corrosion resistance.
(2) Spray painting: coated with anti-rust paint to prevent steel rust.

5. Main uses
Mine U-shaped steel is mainly used in the following scenarios:
(1) Mine roadway support: as a supporting structure of roadway roof and side wall to prevent collapse.
(2) Tunnel engineering: used for tunnel support to ensure construction safety.
(3) Underground engineering: such as subway, underground warehouse and other engineering support.

Mine U-Shaped steel
Size	Specifications (mm)				Weight  (kg/m)	Steel Grade	Length (m)
	H1	H3	B1	M
25U	120.0	15	135	6.3	24.95	20MnK	6-12
25UY	110	17	134	6.6	24.76
29U	124	16	150	7.2	29.00
36U	138	17	171	7.8	35.87
40U	141.9	20	171	8.5	40.05
