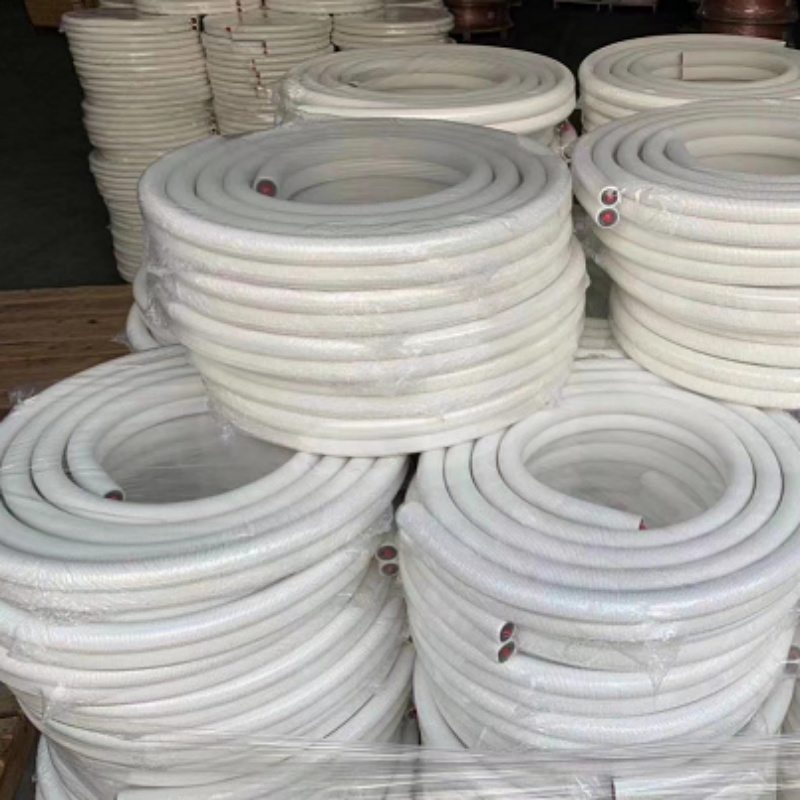

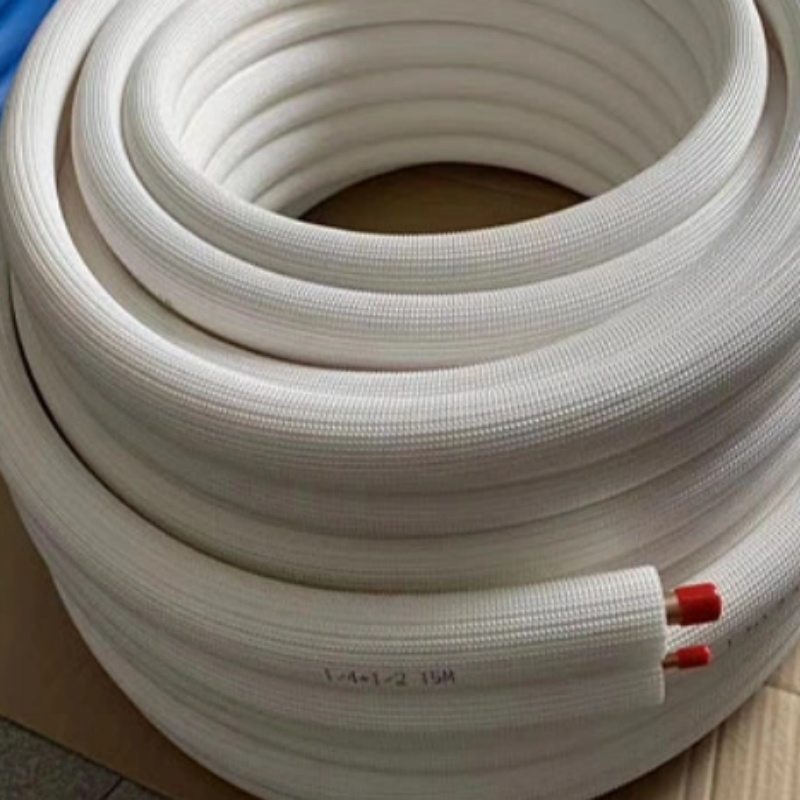

Havc Pancake Copper Pipe

Classification: Copper
Description:

Size: 1/4-7/8" Thickness: 0.56-1.5mm Cu: 99.9% Length: 1-5m Usage: HAVC, air condition and refrigeration .

Views:
Technical Properties for HAVC Pancake Copper pipe
Insulation Type Thermal Conductivity Vapor Barrier Water Absorption Tensile Strength Shrinkage Fire Proof Rating
Irradiation Polythene Insulation
(IXPE Insulation)
≤0.033W/m.k u≥5000 ≤0.0076
g/100cm2
≥0.34MPa ≤7% ASTM E84
UL 94
AS/NZS 1530.3
EN 13501-1

Chemical Composition & Mechanical Property - ASTM B280 Copper Pipe
Copper Alloy Chemical Composition Temper Mechanical Property Grain Size
mm
Copper
%
Phosphorus
%
Tensile Strength
MPa
Elongation
%
C12200 ≥ 99.90 0.015-0.040 O60 ≥ 205 ≥ 40 ≥ 0.040
C12200 ≥ 99.90 0.015-0.040 O50 ≥ 205 ≥ 40 0.015-0.040

Details

Name: HAVC Pancake Copper pipe

Color: Red


Material : C1100, C12200, T2, C11000,C1220

Usages: HAVC, installation of air conditioning and refrigeration systems

Cu Content:  99.90%-99.97%

Packing: Carton or plywood box , coils are capped with plastic end caps

Standard: ASTM B 280 / EN 12735-1 and ASTM B88 and all relevant international standards


Packaging and Transportation

Our company is one of the large steel manufacturers in Shandong with strong supply capacity. Since opening up the international market, our products have been exported to Europe, Russia, the United States, the Middle East and other countries and regions, and are deeply trusted by customers. We use high-standard packaging and efficient transportation, while maintaining timely communication with customers to ensure product safety and on-time delivery.

Customer feedback

Core principles: Quality and service first. Quality is the top priority in all business activities. Good customer service is equally important.
Continuous improvement and innovation: To develop and improve products or services to better meet customer needs.
Quality objectives: Strive for perfection in the delivery of products or services to ensure no defects. Strive for complete customer satisfaction, no complaints. The company is highly focused on maintaining high standards and constantly improving to meet customer expectations.

Application

Steel is widely used in construction, manufacturing, transportation and other fields. In architecture, it is used to build steel structure frames, Bridges and high-rise buildings; In the manufacturing industry, it is used to produce machinery and equipment, automobiles, ships, etc.; In the field of transportation, it is used for railway tracks, vehicle bodies and containers. In addition, steel is used in the energy industry, such as wind power towers and oil pipelines. Its high strength, durability and plasticity make it an important material for modern industry.
