Aluminum Coil Tube

Details

Product Name	Aluminium Coil Tube
Material	1050,1060 2024,6010 etc
Standard	GB/T 20250-2006 Q/HJ 007-06 YS/T 67-2012 GB/T 5584-2009/3954-2008 GB/T 8733
Size	O.D :4mm-20mm  Length:1000mm.1250mm.2400mm.6000mm or as required  Wall Thickness:0.5mm-2.5mm
Surface	Bright.polished,hair line,brush.and blast.checkered.embossed etc.
Tensile strength	68-90Mpa(1000series) 68-105Mpa(3000series)
Application	refrigerator/airconditioner/evaporator/condenser/heat exchanger/freezer/car radiator/gas oven/HVAC&R system
Delivery time	1.Immediately delivery after received the payment if goods in stock . 2.25-30 working days for normally production

Aluminum coil is a kind of coiled tube made of aluminum alloy, which is widely used in many fields because of its flexibility and easy winding. The following is a detailed introduction to aluminum coils:

1. Material and characteristics
Material: Aluminum coils are usually made of pure aluminum or aluminum alloy (such as 3003, 5052, 6061, etc.).
Features:
Lightweight: Aluminum has low density, light weight, and is easy to transport and install.
Good flexibility: easy to coil and bend, adapt to complex installation environment.
Corrosion resistance: The naturally formed oxide film on the surface makes it have good corrosion resistance.
Good thermal conductivity: suitable for heat exchange equipment.
Recyclable: Environmentally friendly and 100% recyclable.
Step 2 Classify
(1) By use:
Refrigeration aluminum coil: used in air conditioning, refrigerators and other refrigeration equipment.
Aluminum coil for heat exchange: used for radiators, condensers, etc.
Aluminum coil for gas-liquid transport: Used to transport gas or liquid.
(2) According to surface treatment:
Bare aluminum tube (no surface treatment)
Anodized alumina tube
Coated aluminum tube (e.g. sprayed anti-corrosion coating)
3. Production process
Extrusion molding: The aluminum rod is extruded by the mold to form the pipe.
Cold drawing process: improve the dimensional accuracy and surface finish of the pipe.
Coil forming: the straight pipe is coiled into a crimp shape by special equipment.
Heat treatment: Enhance the mechanical properties of the aluminum disk (such as hardness, strength).
4. Application field
Refrigeration industry: evaporator and condenser for air conditioning, refrigerator, cold storage and other refrigeration equipment.
Automotive industry: Used in automotive air conditioning systems, radiators, etc.
Industrial equipment: for heat exchangers, cooling systems, etc.
Energy industry: Used in solar water heaters, heat pump systems, etc.
Construction industry: Used for floor heating system, ventilation duct, etc.

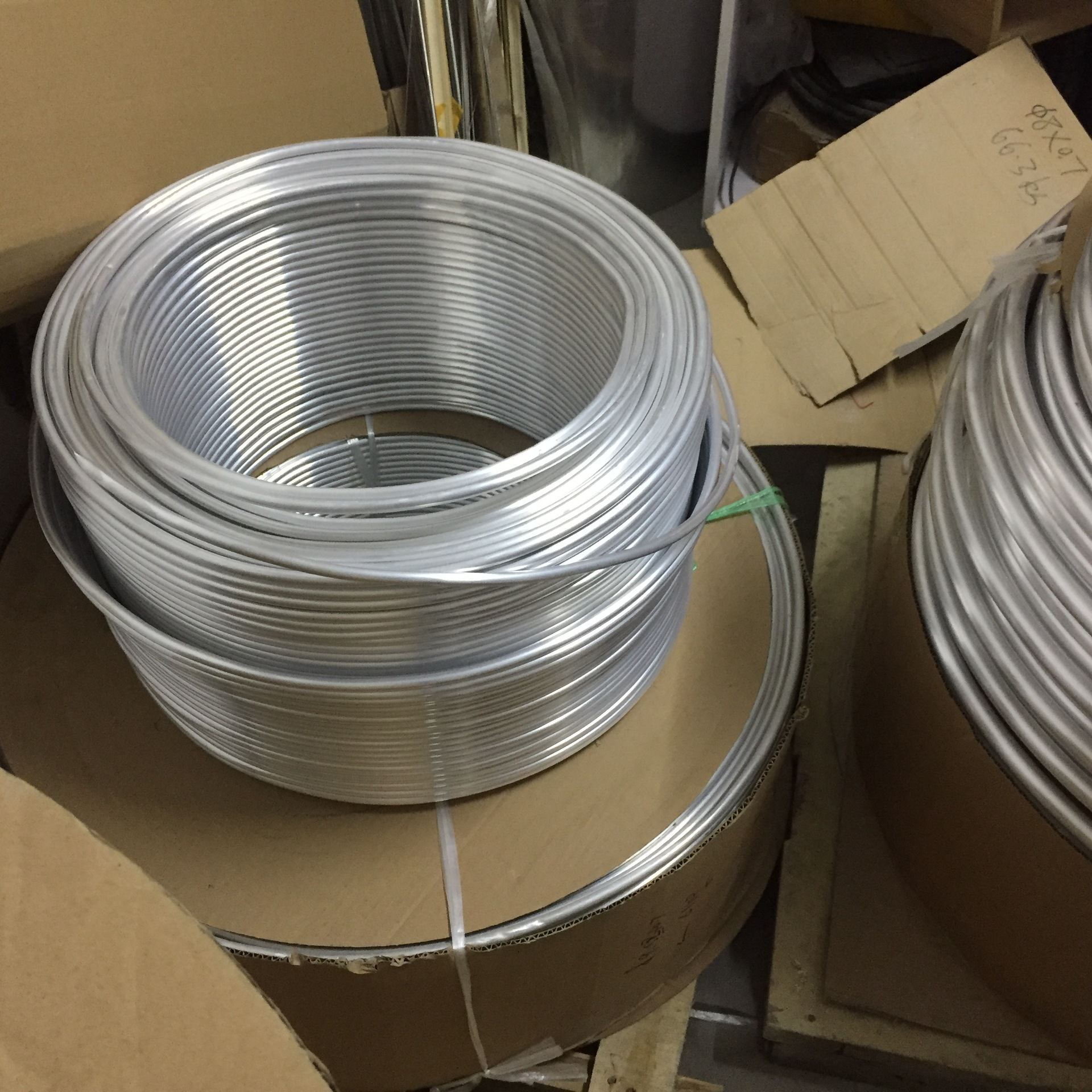

Packaging and Transportation
